Washing Machine Door Handle And Kits Guide For Repair And Maintenance

A snapped washing machine door handle halts household routines instantly. It traps wet laundry inside the sealed drum. You must now make a swift, practical decision. Do you replace the entire appliance, hire a costly technician, or attempt the repair yourself? Fortunately, most door mechanism failures represent simple physical breakages. You only need an accurate diagnostic approach and the proper replacement parts.

This comprehensive guide provides an objective framework for tackling the repair. We will walk you through diagnosing the exact fault accurately. You will learn how to evaluate OEM versus aftermarket replacement components. Finally, we detail a safe, step-by-step execution plan for the replacement. While do-it-yourself repairs save considerable money, specific machine models present unique disassembly challenges. We maintain a realistic, evidence-based approach throughout this guide to help you navigate those hurdles safely.

Key Takeaways

• Diagnosis dictates the purchase: A loose handle often requires a full kit (springs and pins), whereas a cleanly snapped plastic grip may only require the handle itself.

• Model numbers are non-negotiable: "Universal" handles rarely exist; sourcing must be based on the exact appliance data plate to ensure micro-switch alignment.

• OEM vs. Aftermarket: OEM guarantees material tolerance, while aftermarket kits offer cost savings but carry a higher risk of premature fatigue failure.

• DIY Feasibility: Most replacements take 30–60 minutes, requiring only basic hand tools (Torx/Phillips screwdrivers, non-marring spudger), but carry a risk of cracking the plastic door bezel if forced.

Diagnosing the Fault: Do You Need a Single Handle or a Full Kit?

Defining the Components

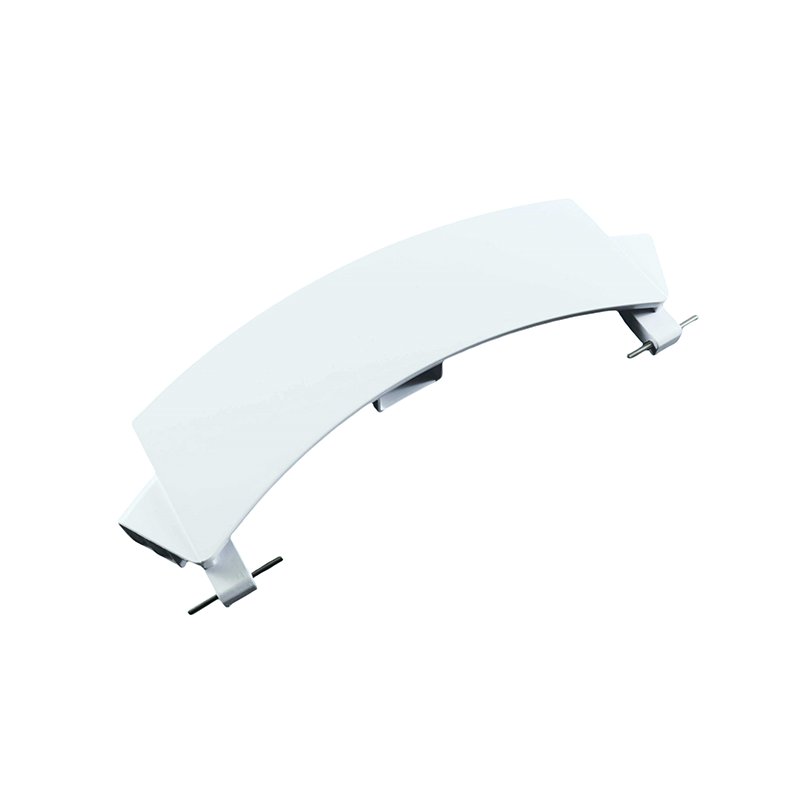

You must understand the anatomy of a standard front-load door mechanism before ordering parts. The assembly relies on four distinct pieces working in harmony. First, the exterior plastic or metal handle serves as your primary grip. Second, the latch pin acts as the striker. It engages the machine chassis to keep the door locked. Third, a small metal tension spring provides the resistance you feel when pulling the handle. Finally, a cylindrical pivot pin holds these three components together inside the door casing. A failure in any single component compromises the entire system.

Single Handle vs. Full Kit Evaluation Criteria

Evaluating the exact nature of the failure saves you time and frustration. We can group handle failures into two common scenarios. These scenarios dictate what replacement parts you actually need to complete the repair.

Scenario A: Single Handle Replacement
Sometimes, the exterior plastic snaps off completely. This usually happens from excessive pulling force. If you inspect the broken stub and the spring still provides firm resistance, the internal mechanism survives intact. In this specific scenario, you may only need to buy the plastic grip. The internal pin and spring remain usable.

Scenario B: Full Kit Replacement
You will often encounter a handle feeling entirely loose or "floppy." The door might fail to engage the interlock when pushed closed. Alternatively, the door remains permanently jammed shut. These symptoms indicate a broken tension spring or a bent striker pin. Under these conditions, you must purchase complete washing machine door handle and kits. Replacing just the plastic handle will not fix a underlying spring failure.

Eliminating False Positives

You must ensure the handle is the actual problem. Sometimes, the electronic door interlock fails instead. Run through a quick diagnostic checklist before ordering mechanical parts. First, listen closely when you press the door shut. You should hear a distinct mechanical click. Next, check the digital display for specific door error codes. Finally, start a cycle. If the machine beeps and refuses to fill, the electronic latch switch might be dead. If the door clicks securely but the machine throws an error, your mechanical handle is likely fine. The electronic sensor requires replacement instead.

Evaluating and Sourcing Washing Machine Door Handle and Kits

Locating the Exact Model Number

Appliance parts are highly specific. You cannot rely on the generic series name printed on the front panel. Manufacturers change internal components frequently during production runs. You must locate the authoritative appliance data plate. Open the door and check the inner door frame. If you cannot open the door, look behind the bottom filter flap. You will also find a duplicate tag on the rear chassis panel. Record the exact model and serial numbers. This data ensures perfect micro-switch alignment when the new handle engages the machine.

OEM vs. Aftermarket Parts

The market offers two distinct categories of replacement parts. Your choice depends on budget and machine usage frequency.

• Original Equipment Manufacturer (OEM): These parts carry a higher upfront cost. However, they feature precise molding and exact plastic density. OEM parts guarantee perfect alignment within the delicate door switch mechanism. We highly recommend them for heavily used household machines.

• Aftermarket or Third-Party Kits: These kits provide significant cost savings. Be aware they feature highly variable plastic density. Cheaper plastics risk warping under the intense heat of hot wash cycles. They serve well as budget fixes but may suffer premature fatigue failure.

What Should Be Included in a Complete Kit?

When you purchase washing machine door handle and kits, verify the exact contents before checking out. A comprehensive repair kit must include four specific items. You need one plastic handle, one metal latch pin, one tension spring, and one pivot pin. Carefully examine the product photos. Avoid listings hiding the spring or pin details. If you suspect a complete internal failure, missing a tiny spring halts your repair entirely.

Essential Tools and Safety Preparation

Safety Compliance

Appliance repair always begins with strict safety compliance. You must unplug the washing machine from the mains electricity. This step is mandatory. It eliminates the risk of electric shock. Sometimes you must bypass the electronic door interlock manually. Working near these internal electrical switches requires absolute isolation from power.

Tool Checklist

Gathering the right tools prevents accidental damage. Modern machines utilize specific fasteners to deter tampering. Prepare the following items before starting the disassembly process:

1. Screwdrivers: You will need standard Phillips heads. However, Torx screwdrivers are often mandatory. Sizes TX15 and TX20 are the most common for door assemblies.

2. Non-marring plastic pry tools: A rigid plastic spudger separates the tight door bezel safely. Never use flathead metal screwdrivers. Metal scratches the glass bowl and cracks brittle plastic casings.

3. Nylon string: A length of strong fishing line or heavy nylon string serves as an emergency door release tool.

4. Digital camera or smartphone: You must document the exact orientation of the tension spring before you remove it. This saves immense frustration during reassembly.

Step-by-Step Replacement Framework

Phase 1: Releasing a Jammed Door

A broken handle often traps the door closed. You must force the latch manually. The classic "string trick" works wonders here. Take your heavy nylon string. Slide a loop entirely around the door gap. Pull the string tight toward the hinge side. The string catches the latch pin and pulls it backward, popping the door open. If this fails, check the bottom filter panel. Many modern machines hide a manual release tab there. Pulling this emergency tab downwards forces the electronic interlock to disengage.

Phase 2: Dismantling the Door Assembly

Once opened, you must remove the door from the chassis. Support the door fully. Remove the heavy screws connecting the hinge to the machine body. Place the door face-down on a soft towel. You now need to separate the inner and outer door trims. Remove all screws circling the inner perimeter. Use your plastic pry tool to gently pop the plastic retaining clips. Lift the inner trim away slowly. Be extremely careful. The heavy glass bowl sits freely between these plastic trims. Dropping the heavy glass bowl ruins the entire machine.

Phase 3: Installing the New Handle and Kit

This phase represents the most common failure point for DIYers. You must orient the new tension spring perfectly. Look at the reference photo you took earlier. Seat the spring precisely into the molded plastic recess. Next, position the latch pin and the plastic handle together. You must now thread the metal pivot pin completely through the handle, the spring coil, and the latch body simultaneously. Push the pin gently. Never force it. Forcing the pin through misaligned holes snaps the delicate plastic retaining brackets immediately.

Phase 4: Reassembly and Alignment Testing

Place the glass bowl back into its designated notch. Lay the inner door trim over the assembly. You must tighten the perimeter screws using a star pattern. Tighten one screw slightly, then tighten the screw directly opposite it. This distributes the pressure evenly. It prevents the plastic from cracking or bowing. Before remounting the door to the chassis, test the latch mechanism manually. Press the handle repeatedly. Ensure the striker pin moves smoothly and returns to its resting position under spring tension.

Implementation Risks and Post-Repair Troubleshooting

Even careful repairs occasionally encounter hiccups. Understanding common pitfalls helps you resolve post-repair issues quickly.

Door Leaks After Repair

Sometimes water drips down the front panel during the first test wash. This indicates a sealing failure. The heavy glass bowl likely shifted during reassembly. Alternatively, the inner plastic trim pinched the rubber door gasket. You must remove the door again. Reseat the glass carefully. Ensure the alignment notches match perfectly before tightening the trims together.

Handle Remains Stiff or Won't Catch

If the newly installed handle refuses to move freely, you seated the spring incorrectly. The legs of the torsion spring must push against the designated plastic stops. If the door closes but fails to lock, you face an alignment issue. The new striker pin might be slightly thicker or angled differently than the original. This prevents the machine's electronic interlock from registering the door as closed.

Cracked Door Bezel (The "Over-tightening" Trap)

Washing machine plastics become highly brittle over years of heat exposure. You must respect this material fatigue. Never use power drills or impact drivers to reassemble the door trims. The immense torque easily shatters the plastic screw bosses. Use manual hand screwdrivers exclusively. Stop turning the moment you feel firm resistance.

Conclusion

Replacing a broken washing machine door handle remains a highly viable and rewarding DIY task. By correctly diagnosing whether you need a single piece or a comprehensive kit, you avoid mid-repair delays. Using exact model numbers ensures you purchase parts matching your machine's exact specifications. Adhering to strict safety protocols protects both you and the appliance from accidental damage.

Take immediate action to resolve your trapped laundry. First, locate your machine's authoritative data plate to find the correct model number. Next, physically inspect the broken handle mechanism to confirm if the internal spring survives. Finally, order the corresponding components from a reputable appliance parts supplier. With patience and basic hand tools, you can restore your machine to full working order within an hour.

FAQ

Q: How do you open a washing machine door if the handle is broken?

A: You can usually open a broken door using the string trick. Loop a strong piece of heavy nylon string entirely around the door seam. Pull the string firmly toward the hinge. This action catches the internal latch pin and pulls it back. Alternatively, check behind the bottom drain filter panel for a manual emergency release tab.

Q: Are washing machine door handles universal?

A: No. Washing machine door handles are never universal. They rely heavily on specific brand, series, and exact model numbers. Even visually identical handles might feature slightly different micro-switch alignment tabs. Always use the factory data plate on your machine to order the exact replacement part.

Q: Is it cheaper to buy just the handle or the full kit?

A: Buying just the plastic handle is marginally cheaper upfront. However, you risk realizing the internal spring is also stretched or broken midway through the repair. We highly recommend purchasing the full kit for peace of mind. The minimal cost difference outweighs the frustration of halting your repair to order additional springs.

Q: How long does it take to replace a door handle kit?

A: Replacing a door handle kit typically takes 30 to 60 minutes. This timeframe accommodates a beginner carefully following a step-by-step guide. The longest portion of the task involves carefully separating the plastic door trims and correctly aligning the new tension spring.
